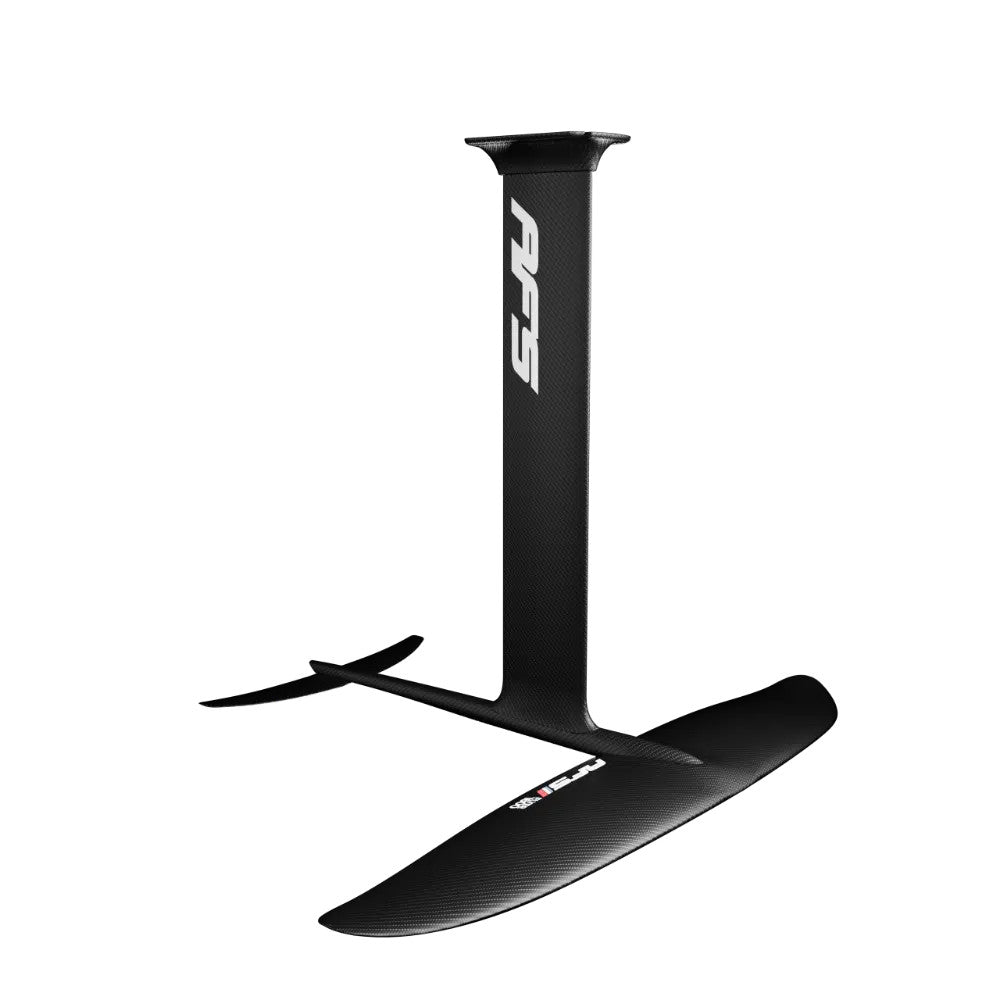

The Flyer foil is designed to accompany your first wing flights. Its smooth take-off, stability, control and predictability make it the ideal foil for learning to fly easily. 100% carbon.
Size guide
- 165 lbs (75 kg) and under 1500
- 165 lbs (75 kg) and above 1800
Specs:
Front wing Flyer
| Surface (cm2) | Span (mm) | Aspect Ratio | Cord max (mm) | Thickness max (mm) | Fuselage size | Construction | Weight (kg) | Screw size |
|---|---|---|---|---|---|---|---|---|
| 1500 | 955 | 6.3 | 185 | 20 | – | HR Carbon / Corecell | TBA | M8x20mm Torx 45 |
| 1800 | 1050 | 6.3 | 205 | 22 | – | HR Carbon / Corecell | TBA | M8x20mm Torx 45 |
Stabilizer
| Surface (cm2) | Span (mm) | Aspect Ratio | Cord max (mm) | Thickness max (mm) | Construction | Weight (kg) | Screw size | Compatibility |
|---|---|---|---|---|---|---|---|---|
| 245 | 450 | 8.3 | 66.8 | 8.3 | Carbone prepreg | 0.2 | M6x16mm | All AFS fuselage |
HR Carbon Mast
| Length (cm) | Cord min (mm) | Thickness min (mm) | Screw size (mast/fuselage) | Construction | Weight (kg) |
|---|---|---|---|---|---|
| 80 | 135 | 16 | M8x40mm | HR Carbon | 1,6 |
Fuselage Evo
| Length | Construction | Compatibility |
|---|---|---|
| 68 cm | Carbone prepreg | All Fuselink/stabs masts |
Features:
- Easy take-off
- Full carbon
- Lightweight and maintenance-free
- Plug & Play
